SLDL5300 Series Soltascan3D Radar Scanner

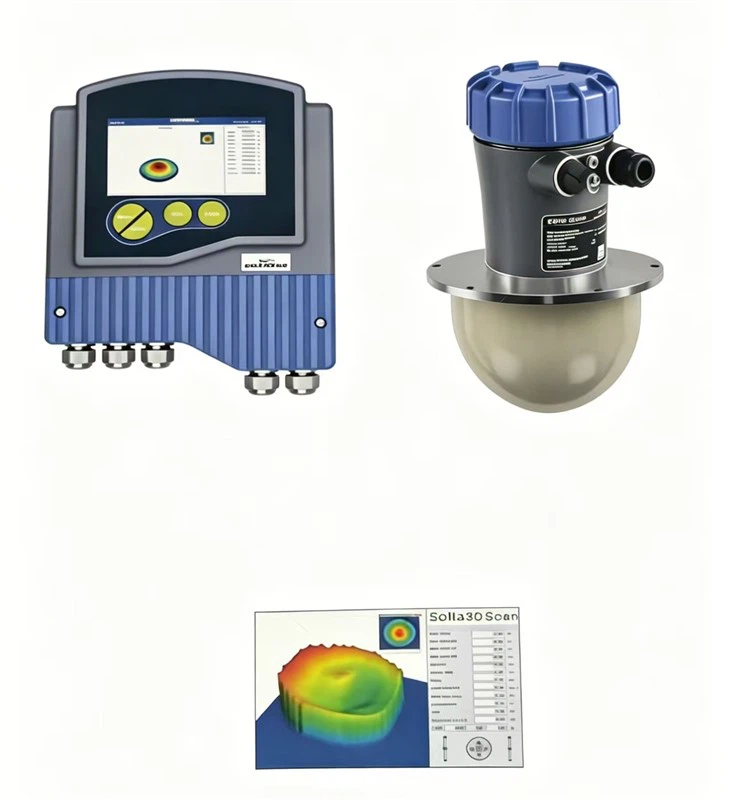

The SLDL5300 Series Soltascan3D Radar Scanner is a professional 3D level measuring instrument specially designed for industrial solid material storage. Driven by a multi-dimensional robotic arm, the device carries a radar ranging sensor to perform high-density scanning on bulk materials, realizing 3D imaging, volume calculation and level monitoring of materials in silos. It is widely applicable to solid material silo measurement scenarios in industries such as grain, thermal power, coal, and cement.

Send Inquiry

Product Introduction

Solidat Applied Technologies Ltd. is one of the leading manufacturers and suppliers of sldl5300 series soltascan3d radar scanner in China, also supports customized service. Please feel free to buy high quality products in stock here and get quotation from our factory. Good service and reasonable price are available.

SLDL5300 Series Soltascan3D Radar Scanner

Brand: SOLIDAT

1. Product Overview

2. Working Principle

Driven by a multi-dimensional robotic arm, the radar ranging sensor collects dense material level height data of bulk materials of various shapes. The data is transmitted to the special software of the industrial computer via RS-485 or optical fiber for calculation, and the 3D image of the bulk materials and the image of whether there is material hanging on the inner wall of the silo are displayed on the computer screen. At the same time, it can display the volume, mass, and maximum, minimum, and average material levels of the materials in the silo.

3. Product Features

Adopting multi-sensor fusion technology, it is suitable for various harsh environments.

Measurement range: 180°×360°

Response speed: 0.1S

Volume accuracy: ±0.5%, Distance accuracy: 1mm

Supports multiple communication methods such as AUTBUS, Industrial Ethernet, and 485.

4. Imaging Effect

It features high-speed data processing and analysis, where data processing is completed quickly and automatically by the computer. The simple 3D graphics operating system realizes the three-dimensional reproduction of the measured target, and can perform interactive operations such as rotation, translation and partial enlargement of the graphics, making the measurement results clear at a glance.

5. Industrial Applications

The SLDL5300 3D measurement system adopts a narrow beam with strong penetration ability, which is more adaptable to complex working conditions. It is not affected by harsh conditions such as high temperature, high dust corrosion, steam, rain and fog, and has a good cost performance. It is widely applicable to the measurement of solid materials in various storage locations, such as silos, containers, bulk solid warehouses, etc.

Application Industries and Typical Scenarios

1. Grain industry: Flat warehouses, shallow silos, silos, star warehouses

2. Thermal power industry: Raw coal bunkers, fly ash warehouses, desulfurization limestone silos

3. Coal industry: Raw coal bunkers, coal blending bunkers, bulk coal piles

4. Cement industry: Raw material powder silos, clinker warehouses, homogenizing silos

5. Other industries: Solid material storage in fields such as chemical industry, iron and steel, energy, food, plastic manufacturing, metal processing, glass manufacturing, and log processing.
