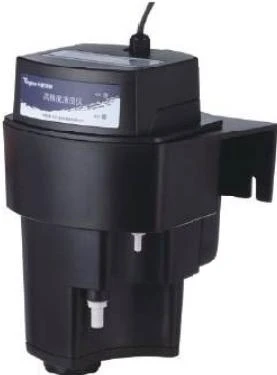

SLDW3380 MTU High-Precision Turbidity Analyzer
OPERATING PRINCIPLE The MTU High-Precision Turbidity Analyzer strictly complies with ISO 7027 international standard and uses the 90°light scattering principle for turbidity measurement.A focused light beam emitted from the sensor's optical module enters the sample chamber and is...
- Product Introduction
Solidat Applied Technologies Ltd. is one of the leading manufacturers and suppliers of sldw3380 mtu high-precision turbidity analyzer, also supports customized service. Please feel free to buy high quality products in stock here and get quotation from our factory. Good service and reasonable price are available.
OPERATING PRINCIPLE
The MTU High-Precision Turbidity Analyzer strictly complies with ISO 7027 international standard and uses the 90°light scattering principle for turbidity measurement.A focused light beam emitted from the sensor's optical module enters the sample chamber and is
scattered by suspended particles.The photodetector captures the
light scattered at a90°angle from the incident beam.The intensity of this scattered light is directly proportional to the turbidity of the sample.
PRODUCT APPLICATION
· Turbidity monitoring at water treatment plants:Pre-filtration, post-filtration,sedimentation stage,and plant outlet
· Municipal water distribution network turbidity monitoring
· Wastewater treatment plant effluent monitoring,including mem- brane filtration and plant outlet
· Industrial water quality monitoring:Circulating cooling water, activated carbon filter outlet,membrane filtration effluent,boiler feedwater,etc.
PRODUCT FEATURES
· Built-in Bubble Elimination Device:Effectively eliminates interference caused by air bubbles,ensuring stable readings under varying flow and pressure conditions
· Inteligent Data Processing Algorithm:Balances fast response during sample changes with stable readings during steady-state conditions
· Light Source Compensation Technology:Minimizes the effect of temperature fluctuations on the light source, improving long- term stability and extending calibration intervals
· Optional Automatic Sludge Discharge Kit:Periodically removes sediment from the bottom of the flow cell,reducing manual maintenance
TECHNICAL SPECIFICATIONS
|
Parameters |
Details |
|
Measuring Range |
0-100 NTU with automatic multi-range switching |
|
Resolution |
0.001NTU |
|
Accuracy |
0-40 NTU:±2%of reading or ±0.02NTU(whichever is greater) 40-100 NTU:±5%of reading |
|
DC Power Supply |
9-27VDC,2W |
|
Digital lnterface |
RS485 interface (Modbus RTU protocol) |
|
Dimensions |
379×310×243mm |
|
Material |
ABS |
|
Cable Length |
2m standard,optional10 mor 30m |
|
Installation Method |
Flow-through installation |
|
Protection Rating |
IP65 |
|
Operating Temperature |
0-40℃ |
|
Relative Humidity |
0-95%RH,non-condensing |
ORDER GUIDE
Controller Model+Sensor Model+Accessory Model Controller Model:SLDWCT10
Sensor Model:W3380
Accessories Model (Sold Separately):
FA0040-MTU Backboard Mounting Kit
FA0041-MTU Automatic Cleaning Kit
FA2001-Pressure Regulating Valve Assembly
