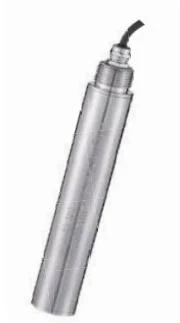

SLDW3360 TSS Turbidity /Suspended Solids Analyzer
OPERATING PRINCIPLE The infrared light emitted by the light source is absorbed,reflected, and scattered as it passes through the measured medium.Within a certain range,the intensity of the scattered light is proportional to turbidity or suspended solids concentration.Based on this princi-...
- Product Introduction
Solidat Applied Technologies Ltd. is one of the leading manufacturers and suppliers of sldw3360 tss turbidity /suspended solids analyzer, also supports customized service. Please feel free to buy high quality products in stock here and get quotation from our factory. Good service and reasonable price are available.
OPERATING PRINCIPLE
The infrared light emitted by the light source is absorbed,reflected, and scattered as it passes through the measured medium.Within a certain range,the intensity of the scattered light is proportional to turbidity or suspended solids concentration.Based on this princi-
ple,the TSS sensor is equipped with two sets of detectors at 135°
and 90°angles.By analyzing the intensity of the received scattered light,the instrument calculates turbidity or suspended solids con- centration.
PRODUCT APPLICATION
· Turbidity monitoring of surface water
· Raw water and filter backwash water in drinking water plants
· Suspended solids measurement in inlet and outlet of wastewater treatment plants
· Turbidity monitoring inindustrial processes and circulating cool- ing water
PRODUCT FEATURES
· Capable of measuring both turbidity and suspended solids(or sludge)concentration
· Built-in multi-point calibration;ready to use without secondary calibration
· Sapphire optical window for high hardness, wear resistance, and optical stability
· Digital sensor with strong anti-interference capability;cable length up to several hundred meters
· Optional brush self-cleaning for maintenance-free operation and reduced O&M costs
TECHNICAL SPECIFICATIONS
|
Parameters |
Details |
|
Measuring Range |
0-4000 NTU;0-1000 mg/L (freely adjustable within range) |
|
Resolution |
≤0.01NTU |
|
Accuracy |
±3%or±0.1 NTU(whichever is greater, based on standard solution) |
|
Repeatability |
0.1 NTUor≤1%(whichever is greater) |
|
Digital lnterface |
RS485 interface (Modbus RTU protocol) |
|
Dimensions |
φ40.5×240 mm |
|
Material |
316L stainless steel |
|
Cable Length |
Standard 10 m,extendable upto 200m |
|
Connection Type |
1"conical external thread |
|
Protection Rating |
IP68 |
|
Operating Temperature |
0-60℃ |
|
Relative Humidity |
0-95%RH,non-condensing |
|
Operating Pressure |
Max.4bar |
ORDER GUIDE
Controller Model+Sensor Model+Accessory Model Controller Model:SLDWCT10
Sensor Model:W3360
Accessories Model (Sold Separately):
FC0400-Brush Self-cleaning Attachment
FA0034-Flow-through Mounting Kit(Wal-mounted)
FA0035-Flow-through Mounting Kit(Floor-mounted)
FA0000-Submersible Mounting Bracket,stainless steel
FA0010-Insertion Mounting Bracket,stainless steel with DN50 (2")stainless steel ball valve
FA0800-Instrument Protection Box,stainless steel
FA0810-Instrument Protection Box,stainless steel with heating element
