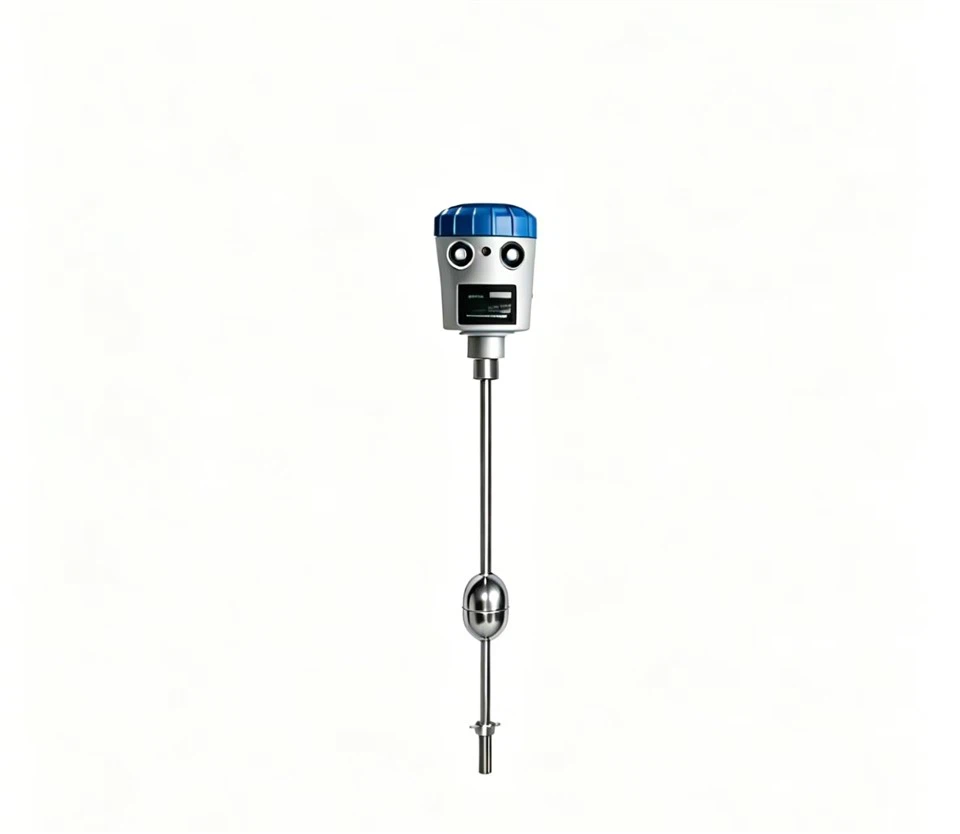

SLDL7100 Series MagScan Magnetostrictive

Solidat Applied Technologies Ltd. is one of the leading manufacturers and suppliers of sldl7100 series magscan magnetostrictive in China, also supports customized service. Please feel free to buy high quality products in stock here and get quotation from our factory. Good service and reasonable price are available.



1. Product Overview

SLDL7100 Series MagScan Magnetostrictive Level Meter is a high-end continuous measuring instrument built by SOLIDAT for high-precision liquid metering. Based on the magnetostrictive effect and time-difference ranging principle, it can accurately measure liquid level, interface level, multi-point temperature and average temperature at the same time. It has the core advantages of ultra-high precision, long service life, explosion-proof, high temperature and high pressure resistance, anti-interference and maintenance-free. It is widely used in petroleum, chemical, oil and gas storage, fine chemical, food and pharmaceutical, electric power and other industries to meet the needs of continuous liquid level and interface monitoring under clean liquid, corrosive medium, high temperature and high pressure medium, flammable and explosive working conditions. It is an ideal high-precision measurement solution for trade settlement, tank metering and process control.

2. Working Principle

The SLDL7100 series magnetostrictive level meter consists of an electronic compartment, a waveguide wire probe rod and a float with a magnetic ring.

When working, the electronic components of the sensor apply an excitation pulse current to the waveguide wire, which propagates along the waveguide wire and forms a pulse magnetic field around it.

The float outside the probe rod floats up and down with the liquid level, and the permanent magnetic ring inside the float forms a fixed magnetic field.

When the pulse magnetic field meets the magnetic ring magnetic field at the float position, the sudden change of the magnetic field causes the waveguide wire made of magnetostrictive material to generate a torsional wave pulse.

The torsional wave is transmitted back to the electronic compartment along the waveguide wire at a fixed speed and detected.

By accurately measuring the time difference between the excitation pulse and the echo pulse, the position of the float, that is, the real height of the liquid level and interface level, is directly calculated. The measurement process has no mechanical wear, no drift, and long-term stability.

3. Product Features

Ultra-high measurement accuracy

The liquid level measurement accuracy is ±0.5mm, the interface level measurement accuracy is ±1mm, and the height resolution is ±0.01mm, which meets the requirements of trade measurement and high-precision control.

Multi-parameter simultaneous measurement

One instrument can output liquid level, interface level, 5-point temperature and average temperature at the same time, supporting volume temperature compensation and simplifying system configuration.

Non-contact and wear-free design

There is no mechanical friction between the float and the probe rod, no wearing parts, long service life and almost maintenance-free.

Strong adaptability to extreme working conditions

The operating temperature is -40℃~+427℃, and the maximum pressure resistance is 207bar, suitable for high temperature, high pressure and deep storage tank scenarios.

Explosion-proof and high safety

Compliant with Exd(ia)ICT6 intrinsic safety and flameproof composite certification, 24V low-voltage power supply, lightning protection, surge protection and electromagnetic interference protection.

Convenient debugging and use

Supports multi-language interface, equipped with echo display function, and can be put into use quickly without complex calibration.

Comprehensive communication interface

Supports HART, Modbus, Profibus PA, Foundation Fieldbus, GPRS, CDMA and Bluetooth, seamlessly connected to DCS and SCADA systems.

Rich structure selection

Rigid SLDL7110 and flexible SLDL7120 are available to adapt to different ranges and installation spaces.

Oil and gas safety design

Excellent sealing of the floating plate, reducing medium volatilization, supporting tank leakage detection function, and improving the safety level of the storage area.

4. Technical Parameters

Measuring principle Magnetostrictive effect

Level measurement accuracy ±0.5mm

Interface measurement accuracy ±1mm

Temperature measurement accuracy ＜0.2℃

Height resolution ±0.01mm

Model and measuring range SLDL7110 rigid type 0~5m, SLDL7120 flexible type 0~20m

Temperature measurement configuration 5-point RTD temperature measurement, supporting volume temperature compensation

Operating temperature -40℃ ~ +427℃

Nominal pressure Up to 207bar

Maximum transmission distance of probe 305m

Power supply voltage 24VDC

Power consumption ≤2W

Explosion-proof grade Exd(ia)ICT6

Protection grade IP67

Signal output 4~20mA+HART, RS485, Modbus, Profibus PA, Foundation Fieldbus, Bluetooth, GPRS, CDMA

Response time ＜1s

Long-term stability ≤±0.05%FS/year

Installation method Top-mounted flange and thread, can be installed without emptying the tank, and the vault tank can be directly installed using the light hole

Applicable media Oil products, chemical liquids, pure water, corrosive liquids, high-temperature heat transfer oil, etc.

5. Installation Instructions

Installation method

Top-mounted vertical installation is the recommended method, fixed on the top of the tank with flanges or threads, the probe is vertically inserted into the medium, and the inclination angle is not more than 5°.

Empty-tank-free installation can be completed without shutdown and emptying, greatly reducing construction costs and downtime risks.

For installation in stirring and impact conditions, a baffle can be installed at the bottom to stabilize the liquid level for slight fluctuations, and a protective tube or sieve tube with pressure balance holes must be installed for severe fluctuations to ensure consistent liquid levels inside and outside the tube, protect the probe and improve measurement stability.

Installation points

The probe must be kept vertical to avoid bending and extrusion.

There are no obstacles in the moving area of the float to ensure smooth up and down movement.

The flange is reliably sealed, and a sealing gasket suitable for the medium is selected.

The instrument shell is reliably grounded to improve lightning protection and anti-interference capabilities.

Wiring shall strictly comply with explosion-proof specifications, no exposed wires, and waterproof connectors shall be installed outdoors.

6. Typical Application Scenarios

Petrochemical industry

High-precision measurement of liquid level and interface level in crude oil storage tanks, product oil storage tanks, chemical raw material tanks, reaction kettles and separators.

Oil and gas storage

Floating roof tanks, vault tanks, underground storage tanks, supporting volatilization suppression and leakage monitoring.

Fine chemical industry

Continuous measurement of corrosive liquids, organic solvents, high-purity materials, acid and alkali storage tanks.

Food and pharmaceutical industry

Liquid level monitoring of hygienic liquid batching tanks, liquid storage tanks and sterile media.

Electric power energy

Heat transfer oil storage tanks, hydraulic oil stations, lubricating oil tanks, water treatment dosing systems.

High temperature and high pressure working conditions

Liquid level control of high-temperature reaction equipment, high-pressure storage tanks and heat medium systems.

7. After-Sales & Service

Professional Technical Support: Provide one-stop installation guidance, commissioning and parameter setting services

Low Maintenance Cost: Self-cleaning function, no regular replacement of vulnerable parts, reduce maintenance workload

Global After-Sales Network: Solidat Applied Technologies has a professional after-sales team to provide timely technical support and spare parts supply

Customization Service: Support high volume accuracy customization and personalized solution design according to customer's on-site needs
