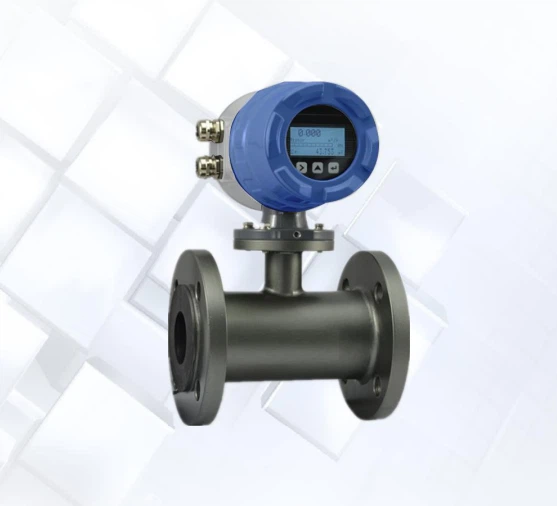

SLDL7110 Integrated MagFlow Electromagnetic Flowmeter

Solidat Applied Technologies Ltd. is one of the leading manufacturers and suppliers of SLDL7110 Integrated MagFlow Electromagnetic Flowmeter in China, also supports customized service. Please feel free to buy high quality products in stock here and get quotation from our factory. Good service and reasonable price are available.

SLDF7110 – Integrated Electromagnetic Flowmeter

SLDF7110 Integrated Electromagnetic Flowmeter is a high‑precision industrial flow meter developed based on Faraday's Law of Electromagnetic Induction, specially designed for flow monitoring of all conductive liquids in closed pipelines. With high‑performance processing chips and stable sensing structure, it provides stable and accurate flow measurement under complex working conditions such as corrosion, abrasion, sewage and slurry.

Working Principle

The meter measures flow based on Faraday's Law of Electromagnetic Induction. Two electromagnetic coils at both ends generate a stable alternating magnetic field. When conductive liquid flows through the measuring tube, induced electromotive force proportional to flow velocity is generated between electrodes on the tube wall. Through signal processing and calculation, it directly outputs volumetric flow, which is not affected by medium density, temperature, pressure, viscosity and other parameters.

Key Features

No obstruction or throttling: No moving parts or resistance parts inside the measuring tube, zero pressure loss, no clogging risk, suitable for easily blocked media such as slurry, sewage and fiber liquid.Bidirectional flow measurement: Supports free setting of flow direction, realizes forward and reverse flow metering, installation is not restricted by flow direction.Wide turndown ratio: Typical turndown ratio 20:1, up to 30:1 or higher, adapting to large flow fluctuation conditions.Intuitive display: Equipped with backlight dot‑matrix dual‑row display, showing instantaneous flow, total flow, operating status and measurement units at the same time.Stable signal processing: Adopts high‑precision ADC and large‑scale integrated chips, with signal isolation, filtering, amplification and digital processing capabilities.Power‑off protection and alarm: Supports power‑off storage of measured values, with overrange alarm and self‑diagnosis function.Multi‑language operation: Supports Chinese and other languages, simple interface and easy commissioning.Anti‑corrosion and anti‑abrasion: Various electrode materials and linings are available for highly corrosive and abrasive media.Abundant communication: Supports HART, Modbus‑RTU, Profibus PA, GPRS/CDMA, Bluetooth and other protocols.Protection and explosion proof: Protection class IP65/IP67/IP68 optional, explosion proof rating Ex ia IIC T6 Ga, suitable for hazardous locations.

Model and Application

SLDF7110 is an integrated standard model with sensor and converter integrated, suitable for working conditions with convenient installation and good environment. Widely used in water treatment, chemical, metallurgy, papermaking, power, mining, food and other industries, measuring clean water, sewage, acid‑base liquid, slurry, mud, fiber liquid and other conductive liquids.

Technical Parameters

Nominal Diameter: DN15～DN2000mmNominal Pressure: 1.0MPa (DN15‑DN80), optional 1.6MPa (DN15‑DN800)Medium Conductivity: Theoretical ≥5μS/cm, actual ≥30μS/cmMedium Temperature: ≤80℃Ambient Temperature: ‑10℃～+55℃Power Supply: 110/220VAC, 24VDCOutput Signal: 4‑20mA, pulse/frequency (max 5kHz)Electrode Material: 316L, Hastelloy B/C, Ti, Ta, PtLining Material: Rubber, PTFEConnection: FlangeProtection Class: IP65, IP67, IP68Explosion Proof: Ex ia IIC T6 Ga

Selection Guide

SLDF7110 can be flexibly configured with electrode material, lining type, pressure rating and output mode according to pipe diameter, medium corrosion, abrasion, temperature, pressure, installation environment, communication requirements and explosion proof requirements to meet flow measurement needs of different industrial sites.

In summary, SLDF7110 Integrated Electromagnetic Flowmeter is a reliable choice for industrial conductive liquid flow measurement due to its zero pressure loss, non‑clogging, high accuracy, high stability and easy maintenance.

After-Sales Service & Technical Support

Professional technical support: One‑stop installation guidance, commissioning and parameter setting.Low maintenance cost: No vulnerable parts, reliable structure, simple later maintenance.Complete service network: SOLIDAT provides fast response, on‑site commissioning and spare parts supply.Customized solutions: Custom caliber, pressure, anti‑corrosion, communication and other special configurations according to working conditions.
