Ultrasonic Flowmeter
Ultrasonic type flow meter Ultrasonic flowmeter, as a volumetric flowmeter, belongs to the category of non-intrusive flow sensors and is widely used in industrial and civil fields. Its working principle is to use acoustic vibration to measure the flow of liquid. It has the characteristics of...
- Product Introduction

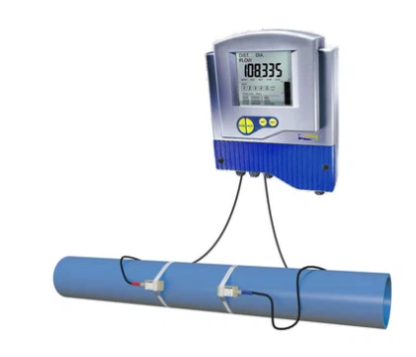

Ultrasonic type flow meter
Ultrasonic flowmeter, as a volumetric flowmeter, belongs to the category of non-intrusive flow sensors and is widely used in industrial and civil fields. Its working principle is to use acoustic vibration to measure the flow of liquid. It has the characteristics of high precision, fast response and easy use. Among ultrasonic liquid flow meters, there are two main types, namely Doppler flow meters and transit time ultrasonic flowmeters.
Doppler flowmeters calculate flow velocity by measuring the velocity of suspended particles in a fluid, similar to Doppler radar. When a sound wave encounters a moving object, its frequency changes. Based on this frequency change, the speed of the fluid can be deduced. Doppler flow meters are suitable for media containing particles in liquids, such as sewage, wastewater, etc., and can measure flow rates stably and accurately.
The transit time ultrasonic flow meter calculates the flow rate by measuring the time it takes for sound waves to travel through the liquid. The principle is to use the relationship between the speed of sound waves propagating in fluids and the flow rate, and determine the flow rate by measuring the time difference between the sending and receiving of sound waves. The transit time flow meter is suitable for various clean liquid media, such as water, oil, etc., with wide applicability and high accuracy.
Non-invasive ultrasonic liquid flow meters can bring optimization to your industrial processes and play an important role in saving energy. The application of ultrasonic flow measurement technology can not only reduce your costs, but also improve the safety of the installation process.
We pride ourselves on providing customized services to our clients. Our design and installation processes are designed to ensure we provide you with a cost-effective solution that meets the individual needs of your site. We are committed to providing the best flow measurement solutions to every customer, thereby bringing greater efficiency and safety to your industrial processes.
Ask
When you first contact SOLIDAT, our passionate team will be on hand to answer your questions and assess your needs. We understand that each venue has its own unique requirements, so we will work closely with you to develop a deep understanding of your individual needs.
Quote
At this stage, our solution management experts will provide a customized quote for your system. For most sites we can complete this process with photos and forms, but for larger or more complex projects we will visit the site in person to conduct an assessment.
Build
Our team will assemble your custom system in our dedicated facility. We will calibrate all equipment that can be commissioned off-site in advance to ensure everything runs smoothly.
Delivery and installation
We will arrange for your equipment to be delivered directly to site and liaise with your chosen contractor to provide installation advice. Depending on the specifics of the project, we may also send personnel to the site to assist with the installation process.
Calibration
Once the equipment is installed, our professional engineers will go to the site to debug the equipment and check whether it is functioning properly. We'll work with you to familiarize yourself with your new system and answer any questions you may have. Once commissioning is complete, we will provide you with an acceptance form to prove that your site fully meets the audit requirements.
Aftercare
Our team is here to support you with any questions or teething problems you may have. For most venues, we also recommend a twice-yearly maintenance package to ensure your equipment continues to function properly.
Advantages of Non-Intrusive Flow Meters
SOLIDAT's high-tech, non-intrusive ultrasonic flow meters are engineered for high-precision measurement of liquid flow and velocity. These advanced flow meters feature quick and easy installation and are available in a variety of materials and pipe diameters.
These industrial measuring instruments reliably measure flow over a wide temperature range, independent of pressure. Its output signal can be effectively transmitted to your control system or monitoring system to achieve real-time monitoring and analysis of data, thereby providing reliable data support for your industrial processes.
•Improving manufacturing quality through reliable, accurate measurements
•Increased productivity due to shorter installation times and no downtime
•Maintenance is reduced since the sensor is not in direct contact with the fluid being measured
This technology has a number of unique technical features, including the following aspects:
•The technology does not require pipe cutting, which means there is no need to interrupt production or process flow during installation, thus avoiding production losses caused by production line shutdowns.
•This technology does not produce a pressure drop during the measurement process, maintains the normal operating status of the pipeline system, and does not have any negative impact on fluid transmission.
•The sensor of this technology does not come into direct contact with the liquid being measured, achieving high-precision flow measurement through non-contact measurement technology while avoiding possible contamination problems caused by contact.
•Since the sensor does not come into contact with liquid, the risk of leakage is eliminated, greatly improving the safety and reliability of the equipment.
How does an ultrasonic liquid flow meter work?
The working principle of ultrasonic liquid flow meters is based on the time difference between the propagation of ultrasonic waves in the fluid. This type of flow meter usually consists of two high-frequency transducers mounted on the outside of the pipe. Ultrasonic waves propagate through the pipe wall over the diagonal cross-sectional area of the pipe into the flowing liquid stream, from one transducer to another. In the case of fluid flow, the ultrasonic pulse "carries" in the direction of flow, while the reflected signal beam "slows down" on the contrary. As a result, the time required for signal transmission from one ultrasonic sensor to another varies. The flowmeter operates by alternating the transmission and reception of sound waves at modulated frequencies. The difference in the propagation time of the sound wave is directly proportional to the measured value of the flow rate and fluid flow. Since the acoustic properties of each liquid are different, it is essential to set the parameters of the ultrasonic flow meter appropriately to ensure a highly accurate measurement.
What are the advantages of the SOLIDAT ultrasonic flow meter?
Low cost and flexible
Compared with electromagnetic flowmeters or other primary element flowmeter technologies, this measurement and control flowmeter instrument has the advantages of low cost and flexibility. It can significantly reduce installation and maintenance costs and effectively reduce the investment cost of the entire project.
Easy and quick installation
Commissioning ultrasonic water flow sensor on pipelines does not require any modifications or stops in the process and production. This flow meter has the advantage of quick installation, you can install it on various pipe sizes in minutes without any drilling or other tedious operations.
Safe and guaranteed
Since the pipes are not cut, there is no risk of liquid leakage during the installation of the ultrasonic pipe flow meter. This non-intrusive installation method effectively maintains the integrity of the pipeline while ensuring the safety and stability of the process.
Health
The design of the sensor mounted outside the pipe ensures that the ultrasonic flow meter sensor is not affected by debris contaminating the liquid. This external mounting method effectively protects the sensor from the external environment and ensures measurement accuracy and reliability.
Low maintenance
The clamps on non intrusive ultrasonic flow meter are non-contact and have no moving parts, so there is no need to worry about mechanical wear or damage. This transit time flow meter does not require frequent calibration or cleaning and can operate stably for a long time, reducing maintenance costs and workload.
High durability and sturdiness
By using high-quality materials, you can ensure that your process equipment has a long service life. The sensor and electronic converter of the ultrasonic flow measuring device have an excellent level of protection and can effectively resist erosion and damage under harsh environmental conditions, thereby ensuring the stability and reliability of the equipment.
High measurement accuracy and fast response time
Using high-performance microprocessor electronics, the ultrasonic flow transducer can achieve excellent flow accuracy, with an accuracy of ±1% and a response time of only 1 second. It has excellent long-term stability and is insensitive to changes in fluid pressure and temperature, ensuring reliability and stability under various working conditions. By continuously calculating the average acoustic velocity of the fluid, this precise flow meter can accurately measure flow rate without being affected by factors such as temperature, density or viscosity, ensuring the accuracy and reliability of the measurement results.
Easily integrate into your system
The LCD color display can intuitively display key parameters such as instantaneous flow, volume and thermal energy, providing users with convenient monitoring and management functions. In addition, these devices feature analog output signals that simplify the data transfer process. Through these analog output signals, users can easily transmit data to systems such as PLC or general controllers to achieve real-time monitoring and adjustment of processes, improving production efficiency and management convenience.
What are the applications of non contact ultrasonic flow meters?
Non-intrusive, ultrasonic clamp-on flow meters offer a number of advantages and are widely used for monitoring and control in industrial processes. These flow meters are suitable for measuring the flow rate of non-particulate liquids in industrial automation and for energy audits, as well as in the following areas:
1. Drinking water supply and wastewater treatment plant: used to detect pipeline leakage and fluid flow direction;
2. Thermal power plant or power plant: used to monitor the flow of boilers, condensate circulating pumps and turbine oil;
3. Building heating and air conditioning: heating and air conditioning systems for hot and cold water;
4. Hot spring baths and swimming pools: used to measure the amount of water pumped;
5. Automotive industry: used for the measurement of paint flow;
6. Food and pharmaceutical industry: used for the measurement of raw materials (milk, oil) and washing water;
7. Chemical and petroleum industry: used to measure chemically corrosive liquids, but not suitable for hazardous areas;
8. Shipbuilding industry: used for the measurement of fuel and hydraulic oil;
9. Environmental and renewable energy field: used to measure various liquids, such as domestic water, waste water, industrial water, seawater, pure water, irrigation water and oil, etc., but excluding open channel applications.
Our ultrasonic flow probe are capable of measuring any liquid with high accuracy in difficult applications with a maximum process temperature of 450°C, but cannot be used to measure gas flow. The sensor's ultrasonic signal automatically adjusts the energy beam to the quality of the pipe and the liquid measured by the clamp on the instrument, so measurements can be carried out with confidence even if the pipe is corroded.
Choose our ultrasonic flow meters and revolutionize your industrial processes!
There are three installation methods for clamp-on ultrasonic flow meters. These three methods are called V method, Z method, and N method respectively.
Generally, when the small pipe diameter is 100~300mm (4"~12"), the V method can be selected first; When the V method cannot detect the signal or the signal quality is poor, the Z method is used; When the pipe diameter is more than 300mm (12") or the cast iron pipe is measured, the Z method should be preferred.
The N method is a less commonly used method and is suitable for pipes with diameters up to 50 mm (2").
Precautions for installation of ultrasonic type flow meter sensor
1. The input pipe parameters must be correct, otherwise it will cause the sensor to be installed incorrectly and not work properly.
2. When installing the clamp-on sensor, use enough couplant to stick it to the pipe wall, and slowly move the sensor near the installation point until the strongest signal and maximum signal quality value are received.
3. Confirm whether the installation distance is in accordance with the sensor installation distance given in the manual.
4. If the signal strength is always 0.00, it means that the flowmeter has not received the ultrasonic signal, and it should be checked whether the parameters related to the pipeline are entered correctly, whether the pipeline is too old, whether its lining is too thick, whether there is no fluid in the pipeline, whether the installation is too close to the valve elbow, whether there are too many bubbles in the fluid, etc.
5. It should be avoided to install and use the flowmeter in the environment with large electromagnetic interference, so as not to cause the accepted signal strength to be too low or fluctuate, which will affect the normal operation of the flowmeter.
6. At the end of installation, the instrument should be powered back on, and the parameters and display results should be checked to see if they are correct.
Our factory
Automated production lines: We invest in advanced automated production lines to improve production efficiency and ensure product quality consistency.
Intelligent manufacturing technology: Use intelligent manufacturing technology to realize digital, networked and intelligent management of the production process.
Continuous innovation: We continuously introduce new technologies and equipment to maintain our leading position in the industry and provide customers with the most competitive solutions.
FAQ
Q: What is time - of- flight ultrasonic flow meter?
A: How do Ultrasonic Flow Meters work (Time of Flight) ? They measure the time it takes for an ultrasonic signal transmitted from one sensor, to cross a pipe and be received by a second sensor. Transit time or Time of Flight flow meters utilize two transducers which function as both ultrasonic transmitters and receivers.
Q: What is transit time in ultrasonic flow meter?
A: Transit time ultrasonic flow meters measure the difference in time from when an ultrasonic signal is transmitted from the first transducer until it crosses the pipe and is received by the second transducer.
Q: What are the two types of ultrasonic flow meter?
A: There are two types of ultrasonic flow meter technologies, including Doppler and transit time. In addition to inline and open channel models, ultrasonic meters are available as clamp-on solutions when contact with the measured fluid is not possible.
Q: What is the purpose of the ultrasonic flow meter?
A: A typical application for an Ultrasonic Flow Meter is measuring flow of liquid in full pipes, also measurement of liquids such as water, wastewater, acids and solvents, chemicals and hydrocarbons and oils, also to monitor and control heating, ventilation and air conditioning systems.
Q: Which type of flowmeter uses the principle of transit time differences of sound waves?
A: Ultrasonic flow meters work based on the principle of 'transit time' or 'time of flight. ' This involves transmitting ultrasonic sound wave from one transducer to another through the fluid in the pipe.
Q: What are the limitations of ultrasonic flow meter?
A: They have limitations in the fluids they can accurately measure. Heavily contaminated fluids and slurry flows can result in the ultrasonic waves being unable to pass though the fluid, rendering the meter incapable of accurately measuring the flow.
Q: What would cause the ultrasonic Doppler flow meter to be inaccurate?
A: The condition and material of the pipe through which the liquid flows can impact the accuracy of the ultrasonic flow meter. Irregularities in the pipe, such as corrosion, scaling, or rough surfaces, can cause signal reflections or attenuations, leading to inaccuracies.
Q: What are the methods of ultrasonic flow measurement?
A: The two main types of ultrasonic flow meters are transit time and Doppler flow meters. Transit time flow meters measure the time difference between upstream and downstream signals, while Doppler flow meters use the Doppler effect to measure the velocity of the fluid.
Q: What are the components of a clamp-on ultrasonic flow meter?
A: Clamp-on ultrasonic flowmeter consists of a transmitter, ultrasonic clamp-on sensor, mounting hardware and cables.
Q: How accurate are clamp-on ultrasonic flow meters?
A: Clamp-on ultrasonic flow meters
They do offer excellent repeatability at around 0.04% to 0.2% and are extremely reliable.
Q: What is ultrasonic clamp-on flow measurement?
A: Ultrasonic clamp-on flow meters measure fluid flow in main applications. By using sound waves to determine the transit time of a gas or liquid, ultrasonic flow meters can accurately monitor any changes in flow, both upstream and downstream.
Q: What is the difference between ultrasonic and magnetic flow meter?
A: Ultrasonics work based on sound pulses and measure the time between emitting and receiving a pulse. Ultrasonic flow meters can measure gases, liquids and vapours, while electromagnetic flow meters work solely on (conductive) liquids.
Q: What is ultrasonic air flow measurement?
A: An ultrasonic flowmeter is a device used for measuring the flow rate of liquids and gases with ultrasound technology. It operates on the principle of measuring the time taken for ultrasonic waves to travel through the fluid from one transducer to another.
Q: How does ultrasonic flow meter work?
A: The ultrasonic flow meter operates by alternately transmitting and receiving a burst of ultrasound between the two transducers by measuring the transit time that it takes for sound to travel between the two transducers in both directions.
Q: Where do you put an ultrasonic flow meter?
A: The transducers should be installed at a pipe section where the length of the straight pipe on the upstream side is at least 10D and on the downstream side is at least 5D. Besides, the transducer installation site should be at least 30D away from the pump.
Q: What is clamp-on flow meter?
A: A portable ultrasonic flow meter for measuring flow in pipes. Portable clamp-on sensors are attached to the outside of the pipe in a non-invasive manner and the volume flow is measured without interrupting the process.
Q: Which flow measuring technology uses sensors clamped to a pipe to measure flow?
A: Doppler and Transit Time are two very popular types of flow meter for non-invasive measurement of flow in full pipes. We tend to confuse these technologies because they are both ultrasonic and both measure flow by using sensors clamped onto the outside of a pipe.
Q: What is ultrasonic flow meter for gas and liquid?
A: An ultrasonic flow meter is a device used to measure the flow rate of liquids and gases without the need for moving parts or contact with the internal fluid. Ultrasonic flow meters are widely used in various industries, including residential and commercial applications, natural gas, and compressed air.
Q: What is the minimum pipe size for ultrasonic flow meter?
A: There are three installation methods for clamp-on flow sensors. These three methods are called V method, Z method and N method respectively.
Generally, when the pipe diameter is 100-~300mm (4"~12"), the V method can be used first; when the V method cannot detect the signal or the signal quality is poor, the Z method can be used: the pipe diameter is above 300mm (12") or the measurement When casting iron pipes, the Z method should be preferred. The N method is a less commonly used method and is suitable for pipes with a diameter of less than 50mm (2").
Q: What material is used for ultrasonic flow meter pipe?
A: Ultrasonic flow meters are suitable for a variety of pipe materials, such as carbon steel, stainless steel, copper, aluminum, iron and plastic. However, it must be ensured that the material of the pipe is strong and there must be no obvious wear, corrosion, or wave deformation that would affect the propagation of ultrasonic waves.
Q: What is a non contact liquid flow measurement?
A: A non-contact flow meter utilizes ultrasonic technology to measure flow rate at critical points of various biotech processes. Ultrasonic technology enables non-contact detection of flow, independent of liquid composition (turbidity, charge, temperature etc.).
Q: The pipe is new, the material is very good, and it meets the installation conditions, but the signal cannot be received?
A: Check whether the pipeline parameters are set correctly, the installation method is correct, the wiring is in good contact, and the coupling agent is fully applied.
Whether the pipeline is full, whether the sensor is installed according to the installation distance shown in the general diagram of the instruction manual, and whether the sensor is installed in the wrong direction.
Q: The pipeline is old and the inner wall of the pipeline is severely scaled. No signal is received during measurement or the signal is too weak. How to solve the problem?
A: Check whether there is fluid in the pipe and it is full;
The Z method should be used to install the sensor (if the pipe is too close to the wall, the sensor can be installed on an inclined pipe diameter instead of a horizontal pipe diameter);
Carefully select the dense part of the pipe and polish it sufficiently, apply sufficient coupling agent and install the sensor;
Carefully and slowly move each sensor near the installation point to find the maximum signal point to prevent the installation point that can receive a stronger signal from being missed due to scaling on the inner wall of the pipe or local deformation of the pipe causing the ultrasonic beam to reflect out of the expected area. :
For metal pipes with serious inner wall scaling, you can use hitting methods to make the scaled parts fall off or crack (note: this method sometimes creates gaps between the scaling and the inner wall, which is detrimental to the propagation of ultrasonic waves).
Q: Why is there flow in the pipeline, but the machine still displays the normal working status of the system, and the instantaneous flow rate displayed by the machine is zero?
A: Check if the "static zero setting" was used in the presence of fluid, if so, use the menu to restore the original factory zero setting.
