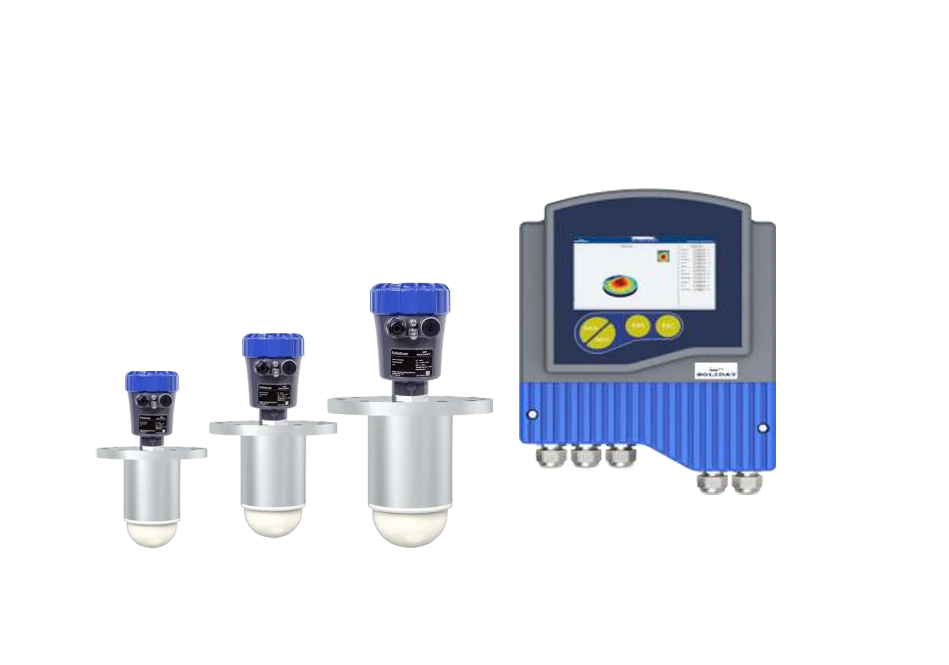

SLDL53-20 Series
SLDL53-20 Series Soltascan3 D Radar Level Volume Meter
- Product Introduction
Solidat Applied Technologies Ltd. is one of the leading manufacturers and suppliers of sldl53-20 series in China, also supports customized service. Please feel free to buy high quality products in stock here and get quotation from our factory. Good service and reasonable price are available.
SLDL53-20 Series
Soltascan3 D Radar Level Volume Meter
Operational Principle
The SLDL53-20 Soltascan3D Radar Level and Volume Measurement Instrument utilizes terahertz radar waves to perform a 360° high-resolution spatial scanning. It supports collaborative operation across up to 255 devices. By integrating technologies such as point cloud stitching, AI, machine learning, and 3D modeling, the instrument transmits the scanned data to an edge server, where dedicated algorithms are employed for data processing, precise fitting, and noise removal. This enables the rapid and accurate acquisition of three-dimensional material information, generation of visualized 3D images, and calculation of parameters such as material level, volume, and weight. The measurement results are then shared via the Industrial IoT, allowing simultaneous access across multiple endpoints; the DCS can directly retrieve both the measurement results and the 3D visualizations.
Product Features
- Continuous non-contact measurement
- Not affected by environmental factors such as temperature, pressure, humidity, or dust.
- Can measure the surface of irregular powders or solid materials.
- Capable of detecting the shape of the cone apex and base, as well as the material accumulation on the side walls.
- Provide minimum, maximum, and average distance data
- Can operate reliably in extremely dusty environments.
- Achieve high-precision calculation of silo capacity.
- Supports protocols including 4–20 mA, HART, PA, FF, Modbus, TCP/IP, AUTBUS, Ethernet-APL, and others.
- The measurement range extends up to 120 meters, enabling combined scanning of multiple devices.
- Features a self-cleaning function, requiring minimal maintenance.
Technical Parameter
| Measurement Characteristics | |
|---|---|
| Measuring frequency | 120GHz~140GHz |
| Scanning scope | 120 m - Horizontal 360°, Vertical 110°; supports multi-camera stitching. |
| Non-contact component material | |
| Hull | Spray-painted aluminum die-cast components |
| Outer shell observation window | Polycarbonate |
| Antenna | PTFE+PEEK |
| Flange | 316 stainless steel |
| Bulkfactor | |
| Radar volume | 355210210mm |
| Controller Size | 285211104mm |
| Weight | 5.6kg+3kg |
| Output form | |
| Output signal | 4-20 mA, HART, PA, FF, Modbus, TCP/IP, Autobus, Ethernet-APL – optional |
| Resolution ratio | 1mm |
| 4–20 mA fault signal | Current output unchanged, 22mA > 3.6mA (adjustable) |
| 4–20 mA current limit | 22 mA |
| 4–20 mA output load | Max 500 Ohm |
| Ambient condition | |
| Environmental / Storage / Transportation Temperature | Standard Type −40→+185°F (−40–85°C); High-Temperature Type −40→+356°F (−40–180°C) |
| Relative humidity | 20% to 85% |
| Height | 16,400 ft (5,000 m) |
| Process Conditions | |
| Container Pressure | -0.2–3 bar (−2.9–41.5 psi or −20–100 kPa) |
| Process Temperature | |
| Process Temperature (measured at the process interface) | Standard Type −40→+185°F (−40–85°C); High-Temperature Type −40→+356°F (−40–180°C) |
| Vibration resistance | 5–500 Hz, 5 g (X/Y/Z axes) @ GB/T 2423.10/ IEC 60068-2-6 |
| Mechatronic Data | |
| Cable inlet / Plug | 1×M20×1.5 cable inlet (compatible cable)1×M20×1.5 Blind BlockageOr 2×1/2 NPT cable inlet |
| Display Panel | |
| Display screen | 4 lines x 20 characters |
| Controller | 4 keys |
| Levels of protection | IP67 |
| Source | |
| Service voltage | 20–32 VDC, 110 VAC, or 220 VDC |
| Power dissipation | Max.1.5W @ 24VDC |
| Electrical protection measures | |
| Electrical protection | IP67 protection rating compliant with IEC60529 standard |
