How Magnetic Flap Level Gauges Improve the Efficiency of Boiler Water Level Monitoring

Why Magnetic Flap Level Gauges Are the Preferred Choice for Boiler Water Level Measurement

1. Introduction: Boiler Water Level Monitoring as a Critical Safety Priority

Boiler drum water level is a decisive factor for the safe operation of thermal equipment. Excessively high water levels may lead to steam entrainment, turbine water hammer and overheater tube rupture; extremely low water levels can cause dry furnace conditions, furnace tube burnout, and even catastrophic boiler explosions. The Technical Supervision Regulations for Steam Boilers mandate that each boiler shall be equipped with two independent water level monitoring devices to realize dual supervision via on-site inspection and remote central control.

Conventional monitoring instruments for boilers have inherent drawbacks: glass/mica water level gauges are fragile, prone to scaling and blurring under high temperatures, and require frequent spare part replacement; differential pressure level transmitters are susceptible to false water level fluctuations and steam drum pressure variations, demanding continuous compensation and calibration; electric contact level gauges suffer from electrode corrosion and scaling, only providing fixed-point alarms without continuous level readings.

Magnetic flap level gauges (also named magnetic float level gauges) adopt non-contact magnetic coupling measurement, high-pressure all-metal structures, and integrated on-site & remote transmission design. They effectively address the harsh operating conditions of boilers including high temperature, high pressure, steam turbulence and 24-hour continuous operation. These instruments greatly reduce maintenance workload, enhance the accuracy and response efficiency of water level monitoring, and have become standard on-site monitoring equipment for industrial steam boilers, power plant steam drums and thermal deaerators.

2. Operating Principle of Magnetic Flap Level Gauges for Boiler Service

Magnetic flap level gauges operate based on the communicating vessel principle combined with isolated magnetic coupling measurement:

The upper and lower flanges of the gauge are connected to the steam and water sides of the boiler drum respectively, so the liquid level inside the measuring tube synchronizes with the actual drum water level in real time.

A high-temperature samarium-cobalt magnetic float is installed inside the measuring tube, ascending and descending synchronously with the liquid level and resisting minor disturbances from steam foam.

Permanent magnetism inside the float penetrates the stainless steel tube wall and drives bicolor magnetic flaps on the outer side to flip. Red flaps indicate liquid phase while white flaps represent gas phase, clearly marking the real-time liquid level boundary.

Optional reed switch or magnetostrictive remote transmission modules output standard 4–20 mA signals to DCS/PLC systems for continuous central monitoring. Magnetic limit switches can be configured to trigger high/low water level audible and visual alarms and interlock boiler shutdown protection.

Core merit: The display assembly is completely isolated from high-temperature media, eliminating the risk of glass rupture and high-temperature steam leakage at the source.

3. Six Dimensions: How Magnetic Flap Level Gauges Boost Boiler Water Level Monitoring Efficiency

(1) Intuitive On-Site Readings Cut Inspection Time

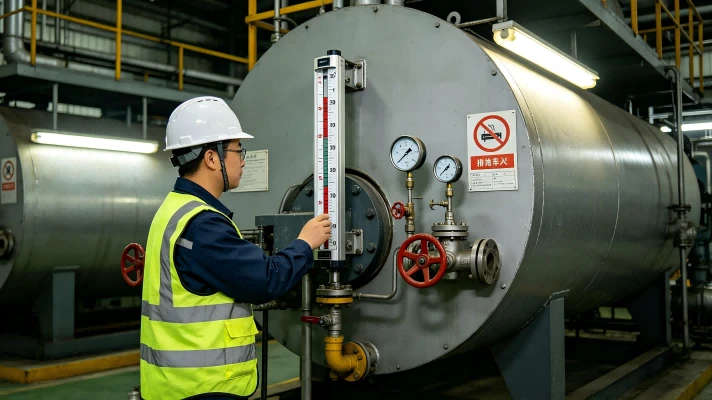

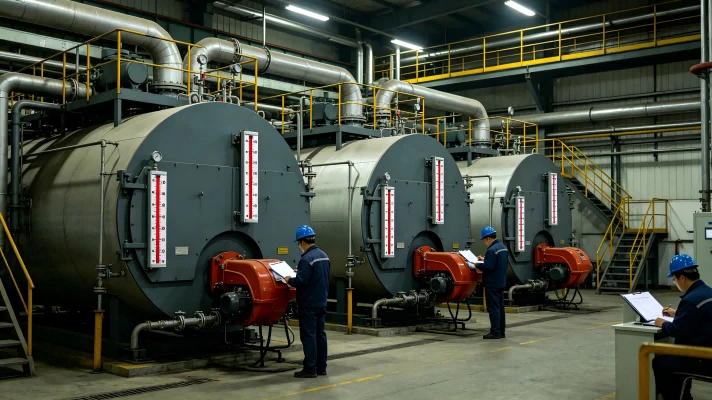

Long-distance visibility: High-contrast red-and-white flaps enable clear identification of liquid level boundaries from 5 meters away. Inspectors do not need to approach the high-temperature boiler body, shortening inspection time per unit.

Passive operation independent of power supply: Readings remain valid during power outages, boiler shutdowns and maintenance, eliminating blind monitoring without on-site reference instruments.

Continuous full-range measurement with no dead zones and stable accuracy of ±5~10 mm. The gauge can serve as an on-site calibration reference for differential pressure and electric contact instruments, reducing frequent comparison between central control and local readings.

In contrast, mica glass water level gauges accumulate limescale and water vapor fog on inner surfaces under high temperatures, requiring manual wiping every shift and lowering inspection efficiency. Thermal expansion and contraction over long-term high-temperature operation cause leakage risks, and glass aging accelerates replacement cycles.

(2) High Temperature & Pressure Compatibility Minimize Instrument Replacement Frequency

Boiler drums commonly operate at 200–350 °C and 1.6–10 MPa, conditions under which ordinary instruments degrade rapidly.

Boiler-specific magnetic flap gauges adopt thickened pressure-bearing conduits of 304/316 stainless steel, with maximum operating limits of 450 °C and 32 MPa to accommodate medium and high-pressure power plant boilers.

Samarium-cobalt high-temperature magnets embedded in floats maintain stable magnetic performance without demagnetization below 350 °C, delivering drift-free long-term readings.

Integrally welded flange structures reduce sealing points to eliminate steam leakage, eliminating frequent gasket tightening and replacement.

Traditional glass water level gauges have narrow temperature and pressure tolerances. Thermal cycling induces persistent leakage, requiring quarterly replacement of mica sheets or glass tubes, which incurs production downtime. Magnetic flap gauges contain no fragile transparent components and deliver a service life of 8–10 years under standard working conditions, drastically cutting maintenance shutdown hours.

(3) Resistance to False Water Level Improves Regulation & Control Stability

Boiler startup/shutdown, load fluctuations and soot blowing generate the so-called false water level phenomenon. Differential pressure transmitters produce severe reading deviations due to saturated steam density variations, misleading operators into frequent feedwater valve adjustment, triggering violent water level oscillation and increased energy consumption.

Magnetic flap gauges track the actual liquid-gas interface directly via physical floats, immune to short-term disturbances from drum pressure and steam foam:

Operators at central control can calibrate drift errors of differential pressure transmitters against on-site magnetic flap readings, reducing frequent valve modulation.

Stable water level control mitigates steam entrainment and steam-water loss, elevating boiler thermal efficiency and cutting fuel consumption.

Misjudgment of water levels that leads to unit load reduction or unplanned shutdowns is avoided.

(4) Integrated On-Site & Remote Transmission Digitizes Full-Cycle Monitoring

Magnetic flap gauges support modular installation of remote transmitters and level switches, fulfilling two core monitoring demands with a single unit:

Local monitoring: Satisfies mandatory on-site visual inspection requirements for safety supervision and regular audits of boiler facilities.

Remote monitoring: 4–20 mA / HART signals upload data to control systems for unattended 24/7 online monitoring.

High/low-limit magnetic switches output discrete signals to interlock feedwater cut-off and boiler shutdown protection. Separate alarm instruments are unnecessary, simplifying piping layout and lowering procurement costs.

Compared with dual configurations of glass level gauges plus electric contact transmitters, the all-in-one magnetic flap solution reduces instrument installation points, simplifies wiring, and shortens on-site assembly and commissioning periods for complete water level monitoring systems.

(5) Ultra-Low Maintenance Reduces Labor & Spare Parts Costs

High temperature, water vapor corrosion and frequent blowdown cleaning are major maintenance pain points for boiler instruments. The fully enclosed all-metal construction of magnetic flap gauges delivers outstanding maintainability:

No consumable components such as glass or mica, eliminating recurring spare part expenses.

Smooth inner tube surfaces resist scaling; only monthly simple blowdown is required instead of shift-based cleaning.

Magnetic coupling involves no mechanical friction parts, lowering frequent faults such as float jamming and signal failure by over 70% annually.

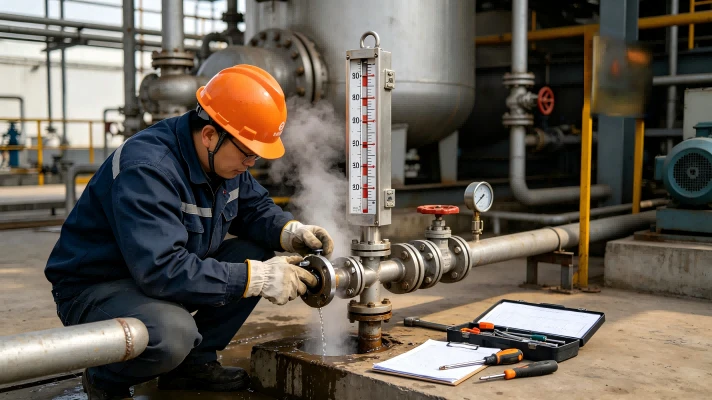

Troubleshooting procedures are straightforward: only isolation valves and float jamming need inspection, which can be completed by general operators without dedicated instrument engineers.

(6) Redundant Safety Configuration Mitigates Accident Disposal Costs

Safety supervision codes mandate dual redundancy: one instrument for on-site visual reading and one for remote monitoring. Magnetic flap gauges independently constitute a complete safety monitoring unit:

When differential pressure transmitters fail or central control screens black out, magnetic flap gauges retain accurate level readings as a reliable manual operation reference.

Fully enclosed explosion-proof all-metal structures eliminate risks of high-temperature medium splashing and personal injury, reducing rectification costs for safety hazards.

Pre-warning of high/low water levels via interlock alarms prevents catastrophic tube rupture and unplanned shutdown losses caused by full water or dry furnace incidents.

4. Core Advantages of Magnetic Flap Level Gauges for Boiler Water Level Measurement: Comparative Analysis

表格

Instrument Type	Key Deficiencies	Comparative Superiority of Magnetic Flap Level Gauges
Glass/Mica Water Level Gauge	Fragile, obscured by high-temperature scaling, high spare part consumption, local reading only	Explosion-proof all-metal construction with superior temperature & pressure resistance; integrated local & remote transmission, minimal long-term replacement needs
Differential Pressure Level Transmitter	Prone to false water level and pressure drift requiring regular calibration; no direct on-site visual reference	Physical float tracks true liquid level; serves as calibration benchmark, readable without power supply
Electric Contact Level Gauge	Fixed-point alarm only, no continuous readings, electrodes susceptible to corrosion	Continuous full-range display, analog output for uninterrupted remote monitoring, zero electrode corrosion risks
Ultrasonic/Radar Level Transmitter	Severe signal drift caused by boiler steam and water mist, unsuitable for saturated steam drum environments	Designed specifically for high-temperature liquid phase service, stable measurement unaffected by steam foam

5. Key Selection Criteria for Boiler-Dedicated Magnetic Flap Level Gauges

Material: 316 stainless steel measuring conduits; samarium-cobalt magnetic floats for high-temperature service; PTFE lining for saline and corrosive boiler water.

Temperature & Pressure Rating: Match the boiler's nominal pressure and saturated steam temperature with a 20% working margin reserved.

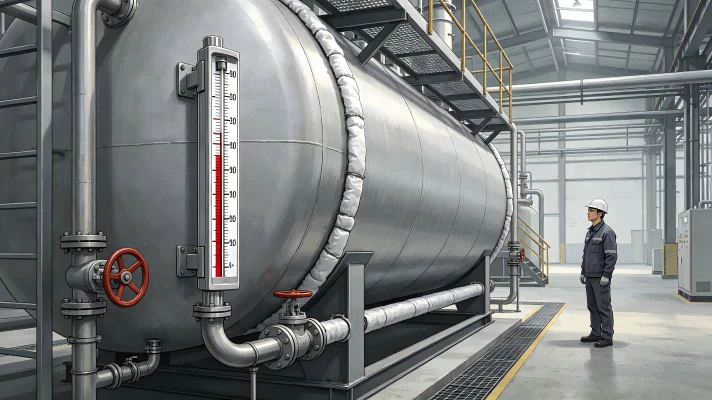

Installation: Side-mounted communicating flange design with integrated blowdown valves; steam tracing jackets for boilers prone to dew formation at low ambient temperatures.

Standard Functions: Bicolor local magnetic flap display + 4–20 mA remote transmission + high/low water level alarm switches to meet dual monitoring requirements of safety supervision codes.

Explosion Protection: Explosion-isolated remote transmission modules for boilers located in hazardous classified areas.

6. Conclusion

The overall efficiency of boiler water level monitoring hinges on four core factors: readout visibility, operating condition adaptability, maintenance cost and safety redundancy. Magnetic flap level gauges deliver six distinctive strengths: passive on-site visual reading, stable operation under high temperature and pressure, immunity to false water level disturbances, integrated local and remote transmission, minimal maintenance and high safety redundancy. They resolve inherent defects of traditional water level instruments, comply with mandatory on-site inspection and safety acceptance standards, and cooperate with central control systems to realize precise automatic feedwater regulation. By reducing equipment failures, unplanned downtime and manual maintenance input, magnetic flap level gauges comprehensively elevate the overall operating efficiency of boiler water level monitoring from safety, production and maintenance perspectives, establishing them as the optimal auxiliary on-site instrument for water level measurement of industrial boilers and power plant steam drums.

---

Glossary of Professional Terms (Standard Industrial Nomenclature)

Magnetic flap level gauge / Magnetic float level gauge

Boiler steam drum

False water level

Samarium-cobalt magnet

Magnetic coupling

Reed switch transmitter

4–20 mA HART signal

Explosion-isolated type

Communicating vessel principle

Interlock protection
